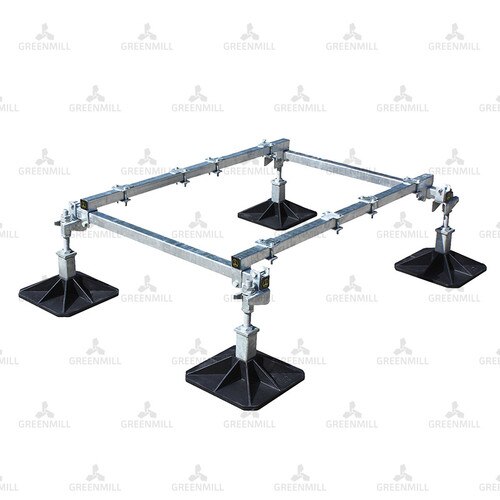

Big Foot MultiFrame Unit Framework (Base Frame) 1m x 1.2m B9720
Detailed description

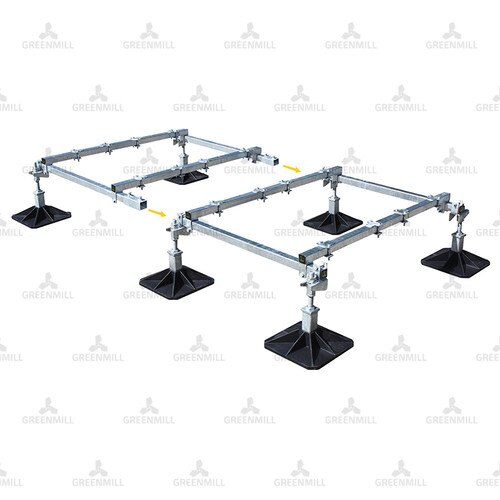

The Big Foot Base Frame (BN9720) is the key part of the MultiFrame non-penetrative load management mounting system for HVAC equipment. The Multi Frame is a versatile, quick and simple to assemble support solution. This modular framework has the ability to extend from any side using the Extension Kit, giving you the flexibility to create the frame configuration to suit your install. Along with the ability to extend, both the leg height and cross bar positions are also adjustable, making it suitable for a wide variety of units.
Specifications
Key Features:
330mm Feet.
Suits a wide variety of units.
Adjustable leg height.
Simple to assemble.
Supplied boxed with clamp kits.
Suitability:
Tested to 1000 hours salt spray.
Hot dipped galvanised steel.
Recyclable EPDM foam mat.
Recycled glassed filled nylon plastic feet.
Length 1000mm
Width 1200mm
Height 330-610mm
Weight 35kg
Max. Load 500kg
Kit Includes:
Plastic foot x 4
End bar x 2
Cross bar x 2
Clamp kits (4 pack) x 2
