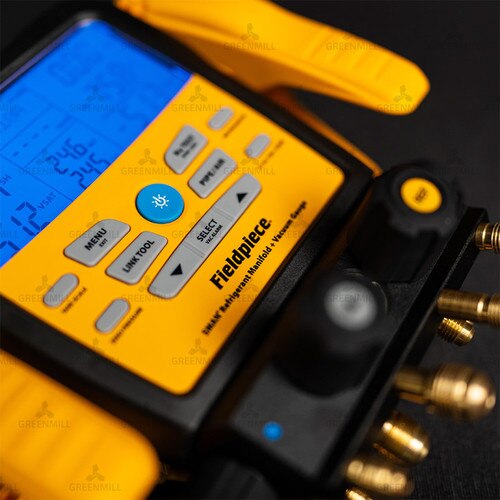

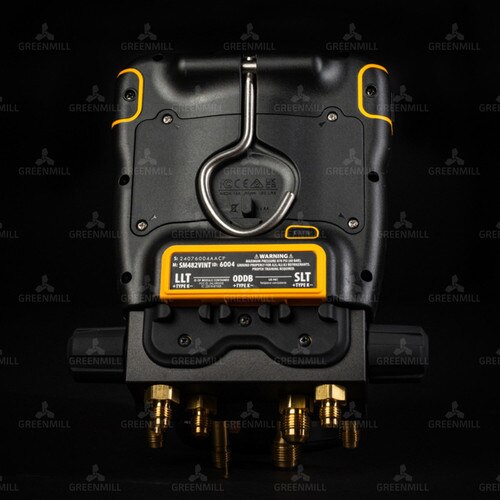

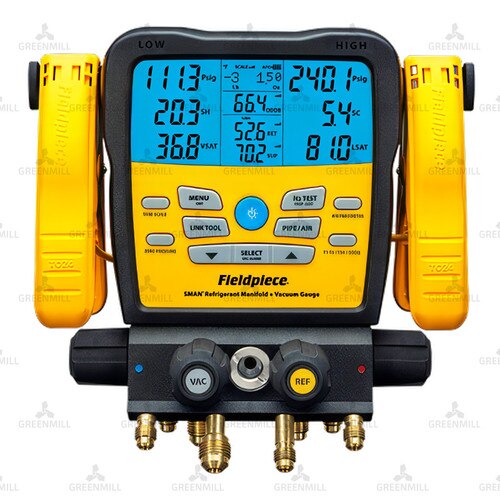

Fieldpiece Wireless SM482VINT Refrigerant Manifold 4-port
Detailed description
The SMAN® Digital Manifold is an essential part of troubleshooting, installing, and maintaining HVACR-systems. This new generation of Fieldpiece Digital Manifolds combines decades of HVACR experience and a focus on the future. Designed for reliability and packed with updated, advanced features, our new Digital Manifold embodies the future of
HVACR technology.
The new Digital Manifold comes with a large display with backlight, 300m Job Link® connectivity, easy-access port fittings, a mounting hook, and a built-in vacuum gauge. Plus, the Digital Manifolds now have an updated IP55 rating, 12 languages on launch, and the ability to connect a third (JL3RH) psychrometer directly to the manifold.
• Connection to Job Link®
• System tightness test
• Water resistant (IP55)
• Ability to connect third psychrometer
• Heavy duty casing
• Ability to data log
• A1, A2L, A3 compatible
• Built-in vacuum gauge
Specifications
Specifications
• Vacuum Port
• Refrigerant Port
• Display: LCD (12,7cm diagonal)
• Job Link® System integration
• Wireless Range: 300 metres (line of sight - distance decreases through obstructions)
• Maximum Manifold Pressure: 800 Psig (5500 kPa)
• Data Port: USB-C (for extracting data logs or updating firmware)
• Operating Environment: -10°C to 50°C at <75% RH
• Storage Environment: -20°C to 60°C at <80% RH
• Temperature Coefficient: 0.1 x (specified accur acy) per °C (-1O°C to 18°C, 28°C to 50°C)
• Water Resistant: IP55 Rating
• Weight 1.8kg
