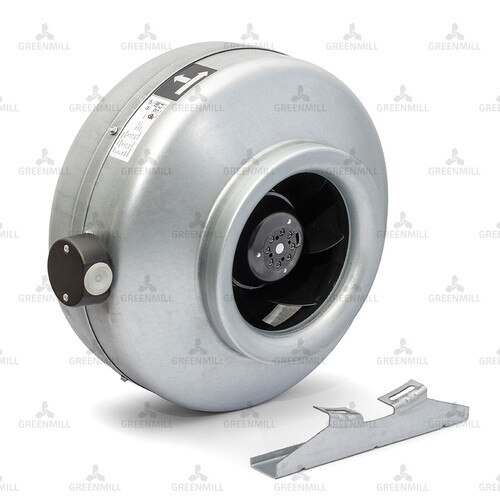

125mm Steel In-Line Fan
SKU: GMSI125
Detailed description
The Steel Centrifugal In-Line Fans are manufactured from high grade corrosion-resistant pressed galvanised steel and are supplied complete with a pre-wired junction box. The motors are IP44 rated and all models are speed controllable.
- Motor Power Watts: 80
- Current Amps: 0.35
- Transformer Speed Controller: GMTSC15
- Electronic Speed Controller: GMESA1
Volume air flow m3/sec against static pressure pa. | |
0 | 0.108 |
50 | 0.095 |
100 | 0.081 |
150 | 0.068 |
200 | 0.058 |
250 | 0.047 |
300 | 0.035 |
Specifications
125mm Steel In-Line Fan c/w mounting foot
Data Sheet
