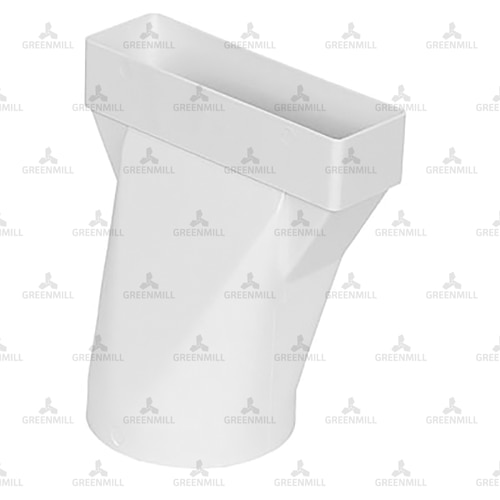

110 x 54mm - 100mm Round to Flat Adaptor
SKU: GMVDF32
Detailed description
110 x 54mm - 100mm Round to Flat Adaptor
NOTE: 110 x 54mm duct lengths insert into 110 x 54mm fitting.
| Resistance (Pa) at flow rate | |||||||
| 8 l/s | 13 l/s | 21 l/s | 29 l/s | 37 l/s | 45 l/s | 53 l/s | 61 l/s |
| 1.2 | 4.2 | 8.3 | 19.8 | 29.9 | 42 | 60 | 86 |
| External Dimensions | ||
| H | W | D |
| 100 | 115 | 180 |
Specifications
110 x 54mm - 100mm Round to Flat Adaptor
